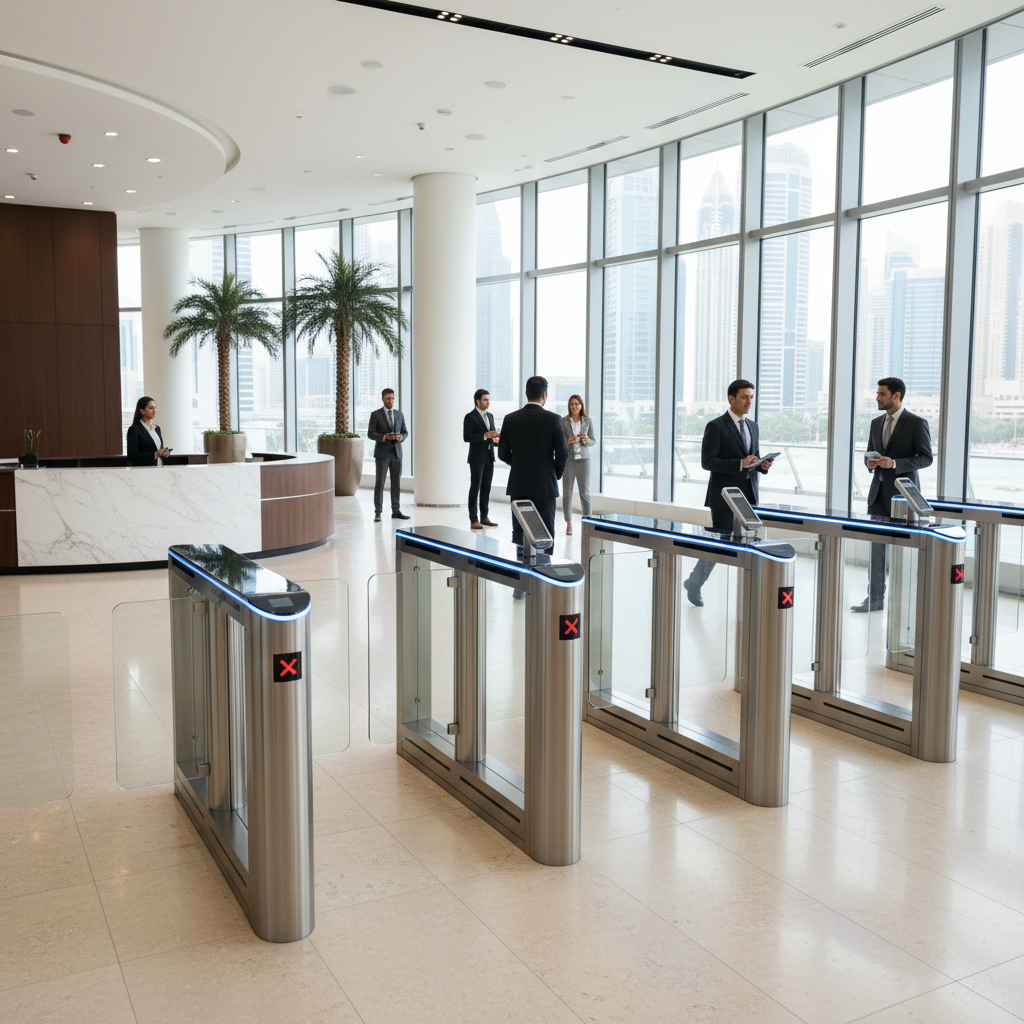

Swing Barrier Speed Gates

In the fast-paced commercial landscape of the UAE, including major hubs like Dubai, Abu Dhabi, and Sharjah, managing pedestrian flow efficiently and securely is paramount. Aspects Integrated Solutions provides state-of-the-art Swing Barrier Speed Gates designed for high-throughput environments. These elegant and robust systems seamlessly integrate advanced access control technology with sophisticated aesthetics, ensuring only authorized personnel gain entry. Ideal for corporate headquarters, government buildings, and transit centers, our swing gates deliver unparalleled security, rapid processing, and a modern entrance experience.

Key Features & Benefits

Premium Quality

Industry-leading products built to last with superior materials and craftsmanship

Advanced Technology

State-of-the-art features and smart integration capabilities

Certified & Compliant

Meets international safety and quality standards

24/7 Support

Round-the-clock technical support and maintenance services

Expert Installation

Professional installation by certified technicians

Warranty Included

Comprehensive warranty coverage for peace of mind

Overview

Swing Barrier Speed Gates are sophisticated, automated pedestrian turnstiles designed to manage high volumes of foot traffic while maintaining strict security protocols. Unlike traditional turnstiles, these gates utilize motorized swinging panels, often constructed from tempered glass or stainless steel, that retract rapidly into the cabinet upon validation of credentials (such as RFID cards, biometric scans, or QR codes). They are engineered for speed, allowing throughput rates significantly higher than standard tripod turnstiles, making them the preferred choice for busy lobbies and transit stations across the UAE. The integrated sensors prevent tailgating and unauthorized entry, providing a robust barrier against security breaches. These systems are typically bidirectional, allowing controlled entry and exit, and feature fail-safe mechanisms to ensure rapid evacuation during emergencies, aligning perfectly with stringent UAE safety standards.

Key Benefits

Choosing our Swing Barrier Speed Gates offers a multitude of benefits essential for modern commercial security in Dubai and the wider UAE:

Rapid Throughput and Efficiency: Designed for high-volume environments, these gates process authorized users quickly, eliminating bottlenecks during peak hours. The swift swing action minimizes wait times, enhancing user experience.
Enhanced Security and Tailgating Prevention: Integrated infrared sensors create an invisible detection curtain, accurately identifying unauthorized attempts to follow legitimate users (tailgating). If an attempt is detected, the barrier remains closed or triggers an alarm.
Sleek, Modern Aesthetics: Featuring premium materials like brushed stainless steel and clear tempered glass swing barriers, these systems elevate the visual appeal of any lobby or entrance area, reflecting the professionalism of your organization.
Seamless Integration with Access Control: Our gates are fully compatible with all major access control systems used in the UAE, including biometric readers, facial recognition, proximity cards, and visitor management software, providing a unified security solution.
Accessibility Compliance (ADA/PWA): Wider lane options are available to accommodate wheelchairs, strollers, and large luggage, ensuring compliance with accessibility requirements and providing comfortable passage for all users.

Applications & Industries

The versatility and high security offered by Swing Barrier Speed Gates make them indispensable across various sectors in the UAE. In Dubai’s bustling financial district, they secure corporate headquarters and banking facilities, ensuring only verified employees and clients enter restricted areas. Government ministries and public service centers in Abu Dhabi utilize them to manage large visitor volumes efficiently while maintaining strict control. They are essential in major transportation hubs, including airports and metro stations, where rapid processing is critical. Furthermore, high-end residential towers, universities, data centers, and large-scale convention centers throughout Sharjah and the wider Emirates rely on these sophisticated gates to blend high-level security with a premium aesthetic. Their robust construction ensures reliable performance even in the most demanding, high-usage environments.

Certifications & Compliance

All our Swing Barrier Speed Gates adhere to rigorous international safety and quality standards, ensuring maximum performance and compliance within the UAE market. Key certifications include CE marking, confirming conformity with health, safety, and environmental protection standards for products sold within the European Economic Area, and relevant ISO standards for quality management. Furthermore, our systems are designed to meet specific fire and safety codes prevalent in Dubai Civil Defence regulations, featuring fail-safe mechanisms that automatically open the barriers upon activation of the fire alarm system. This commitment to certified quality and safety compliance provides our clients in the UAE with complete peace of mind.

Technical Specifications

[ { "feature": "Materials", "details": "304 or 316 Grade Stainless Steel Casing; 10mm Tempered Glass Panels (Optional Acrylic)" }, { "feature": "Motor Type", "details": "High-Efficiency Brushless DC Motor (Maintenance-Free)" }, { "feature": "Throughput Speed", "details": "Up to 35 people per minute (single lane)" }, { "feature": "Lane Widths", "details": "Standard (550mm-600mm); Wide/Accessible (900mm-1000mm)" }, { "feature": "Power Supply", "details": "AC 220V / 50Hz (Standard UAE)" }, { "feature": "Safety Features", "details": "Anti-Pinch Sensors, Automatic Power-Off Drop Arm (Fail-Safe), Fire Alarm Integration" }, { "feature": "MCBF (Mean Cycles Between Failures)", "details": "5 Million Cycles" }, { "feature": "Operating Temperature", "details": "-20°C to +60°C (Suitable for UAE climate)" } ]

Frequently Asked Questions

[ { "question": "What is the difference between a Swing Barrier Gate and a Tripod Turnstile?", "answer": "Swing Barrier Gates offer significantly faster throughput (up to 35 people per minute) and a more elegant, modern aesthetic, often featuring glass panels. Unlike mechanical tripod turnstiles, swing barriers use motorized panels that retract fully, providing a wider, more accessible lane and superior anti-tailgating technology, making them ideal for high-traffic corporate lobbies and secure areas in Dubai." }, { "question": "How effective are Swing Barrier Speed Gates at preventing tailgating?", "answer": "They are highly effective. Our speed gates utilize multiple infrared sensor beams that create a dense detection field. This sophisticated sensor array accurately detects the presence, direction, and number of people passing through, triggering an immediate alarm and keeping the barrier closed if an unauthorized person attempts to follow closely behind a valid user." }, { "question": "Can these gates integrate with existing access control systems in the UAE?", "answer": "Yes, absolutely. Our Swing Barrier Speed Gates are designed for universal compatibility. They can seamlessly integrate with virtually any access control system currently used across the UAE, including HID card readers, biometric scanners (fingerprint, facial recognition), QR code readers, and visitor management platforms." }, { "question": "Are there options for accessibility (ADA/PWA) compliance?", "answer": "Yes. We offer dedicated wide-lane models (typically 900mm to 1000mm wide) specifically designed to comply with accessibility standards for persons with disabilities (PWA). These wider lanes accommodate wheelchairs, mobility scooters, and large delivery items, ensuring inclusive access." }, { "question": "What maintenance is required for a Swing Gate in the UAE climate?", "answer": "Due to the use of high-grade stainless steel and brushless DC motors, maintenance is minimal. We recommend routine preventative maintenance checks, typically semi-annually, to clean sensors, check motor alignment, and ensure all electronic components are functioning optimally, especially given the high temperatures and dust common in the UAE." } ]

Why Choose Aspects Solutions?

Aspects Integrated Solutions is the trusted authority for advanced physical security in the UAE. With years of specialized experience delivering complex projects in Dubai and Abu Dhabi, we offer more than just products—we deliver complete, integrated solutions. Our team of certified engineers provides expert consultation, seamless installation, and proactive maintenance, ensuring your Swing Barrier Speed Gates operate flawlessly 24/7. We understand the unique security challenges and regulatory requirements of the UAE market. By partnering with global leaders and adhering to the highest international standards, we guarantee reliability, durability, and compliance, making us the preferred supplier for critical infrastructure and corporate clients across the region.

Get a Free Consultation

Speak with our experts about your project requirements and get a customized solution.

✓ Free site survey

✓ Expert consultation

✓ Competitive pricing
